AXK 1024
XSP

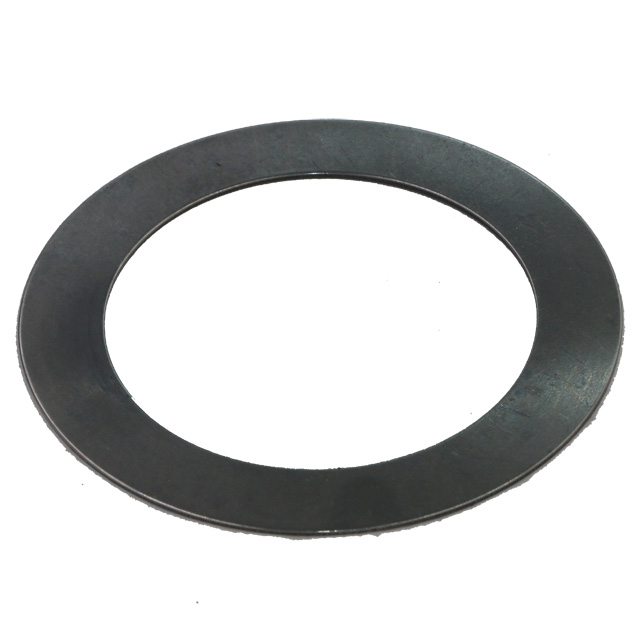

rodamiento de agujas de empuje AXK 1024
Talla:
DC1: 10 mm
DC: 24 mm
DW: 2 mm
Peso: 3 g
Material: acero cromado, Gcr15
| designacion | Dimensions | ||
| d (mm) | D (mm) | B (mm) | |
| AXK 0414 TN | 4 | 14 | 2 |
| AXK 0515 TN | 5 | 15 | 2 |
| AXK 0619 TN | 6 | 19 | 2 |
| AXK 0821 TN | 8 | 21 | 2 |
| AXK 1024 | 10 | 24 | 2 |
| AXW 10 | 10 | 27 | 2 |
| AXK 1226 | 12 | 26 | 2 |
| AXW 12 | 12 | 29 | 2 |
| AXK 1528 | 15 | 28 | 2 |
| AXW 15 | 15 | 31 | 2 |
| AXK 1730 | 17 | 30 | 2 |
| AXW 17 | 17 | 33 | 2 |
| AXK 2035 | 20 | 35 | 2 |
| AXW 20 | 20 | 38 | 2 |
| AXK 2542 | 25 | 42 | 2 |
| AXW 25 | 25 | 45 | 2 |
| AXK 3047 | 30 | 47 | 2 |
| AXW 30 | 30 | 50 | 2 |
| AXK 3552 | 35 | 52 | 2 |
| AXW 35 | 35 | 55 | 2 |
| AXK 4060 | 40 | 60 | 3 |
| AXW 40 | 40 | 63 | 3 |
| AXK 4565 | 45 | 65 | 3 |
| AXW 45 | 45 | 68 | 3 |
| AXK 5070 | 50 | 70 | 3 |
| AXW 50 | 50 | 73 | 3 |
| AXK 5578 | 55 | 78 | 3 |
| AXK 6085 | 60 | 85 | 3 |
| AXK 6590 | 65 | 90 | 3 |
| AXK 7095 | 70 | 95 | 4 |
| AXK 75100 | 75 | 100 | 4 |
| AXK 80105 | 80 | 105 | 4 |
| AXK 85110 | 85 | 110 | 4 |
| AXK 90120 | 90 | 120 | 4 |
| AXK 100135 | 100 | 135 | 4 |
| AXK 110145 | 110 | 145 | 4 |
| AXK 120155 | 120 | 155 | 4 |
| AXK 130170 | 130 | 170 | 5 |
| AXK 140180 | 140 | 180 | 5 |
| AXK 150190 | 150 | 190 | 5 |
| AXK 160200 | 160 | 200 | 5 |
